Description
- Pro-Fast Engraving – 4,000 mm/s speed, 6X faster than LP2 for high-efficiency precision.
- 10W Diode Laser – Delivers deeper cuts and micron-level accuracy for perfect finishes.
- Wide Material Support – Engrave 100+ materials including wood, leather, acrylic, and coated metals.
- Classic Portable Design – Multi-angle flexibility and dual red-dot focus for quick alignment.
- SpinTrack™ & Accessory Ecosystem – Engrave long or cylindrical items up to 2m; compatible with extensions and accessories for endless creative possibilities.
| Type | Details |
|---|---|
| Laser Type | 10W 450nm Diode Laser |

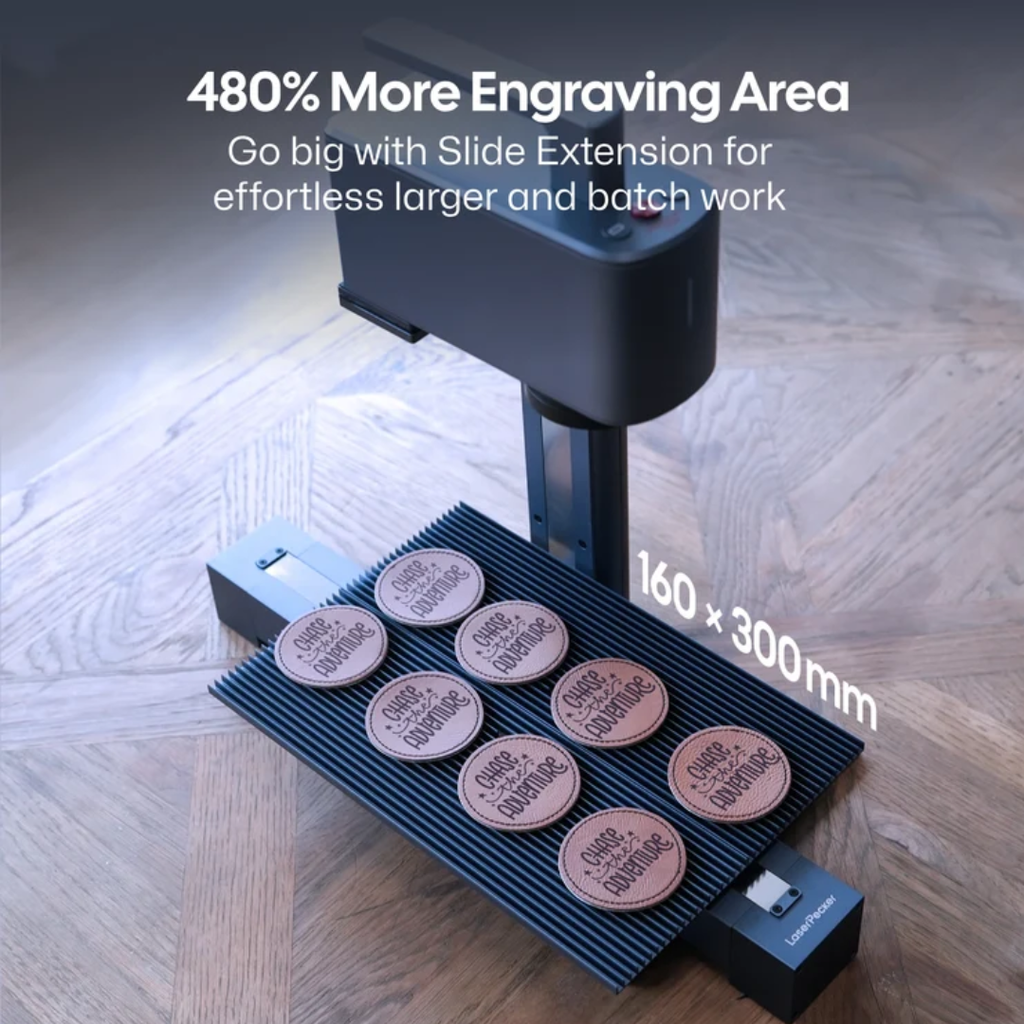

| Working Area | 3.94" × 3.94"(100mm × 100mm) With Verstaile Electric Roller: 6.30" x 78.74"(160mm x 2000mm) With Rotary Extension: 6.30" x 24.72"(160 x 628 mm) With Slide Extension: 6.30" x 11.81"(160 x 300mm) |
| Max Processing Height | 5.24" (133mm) |
| Max Engraving Speed | 157.48 ips (4000mm/s) |
| Max Preview Speed | 393.70 ips(10000mm/s) |
| Resolution | 1K / 2K / 4K |
| Supported Materials | Paper, Wood, Bamboo, Leather, Felt, Coated Metal, 304 Stainless Steel, Tinted Glass, Dark Opaque Acrylic, etc. |

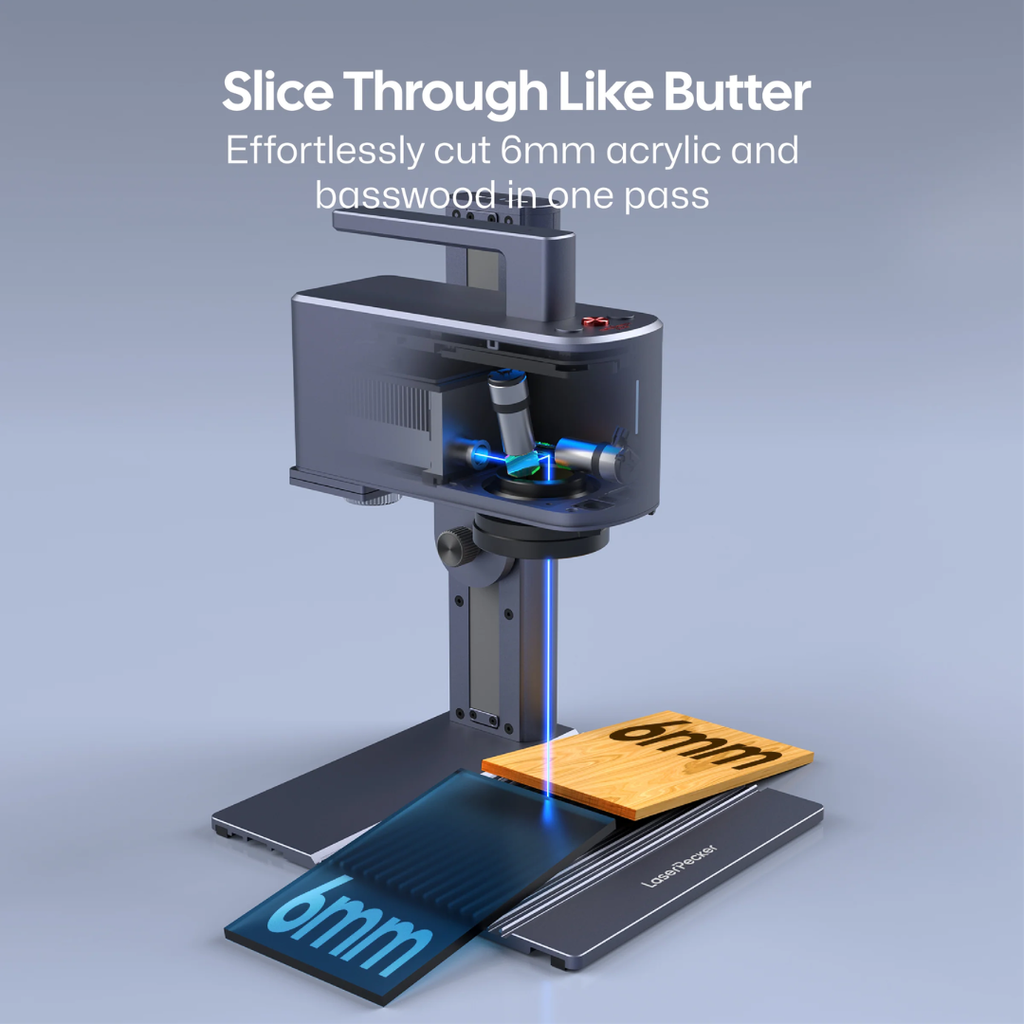

| Cutting Depth | Basswood: 0.24"(6mm) / 1 Pass 0.32"(8mm) / 2 Pass Black Acrylic: 0.24"(6mm) / 1 Pass 0.32"(8mm) / 2 Pass |
| Spot Size | 0.06 x 0.08mm |
| Focus Length | 5.91"(150mm) |
| Preview Mode | Rectangle Preview / Outline Preview / Center Point Preview |
| Focus Mode | Dual Red-dot Focusing |
