Description

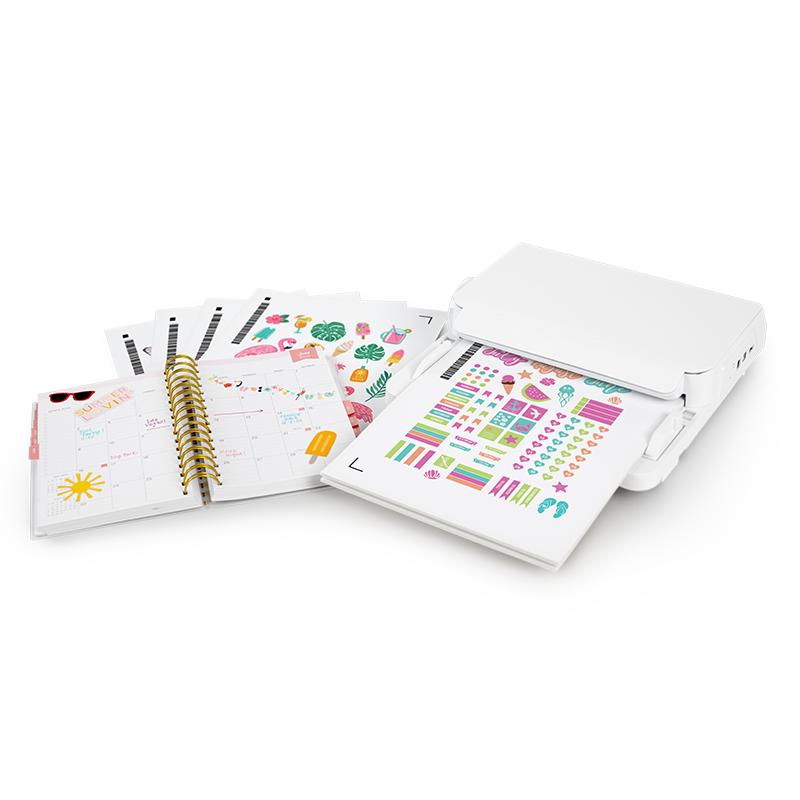

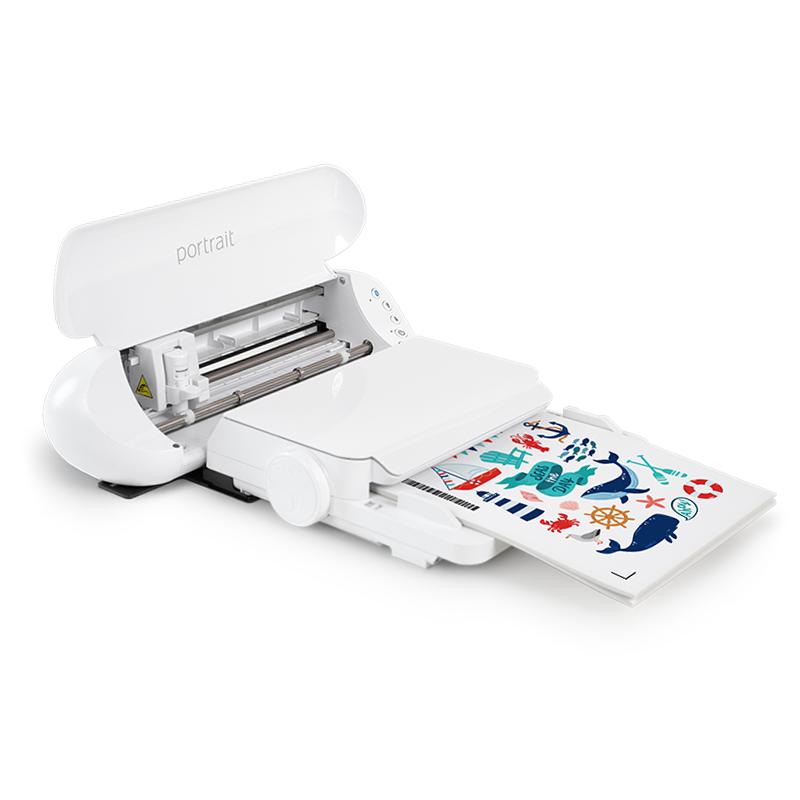

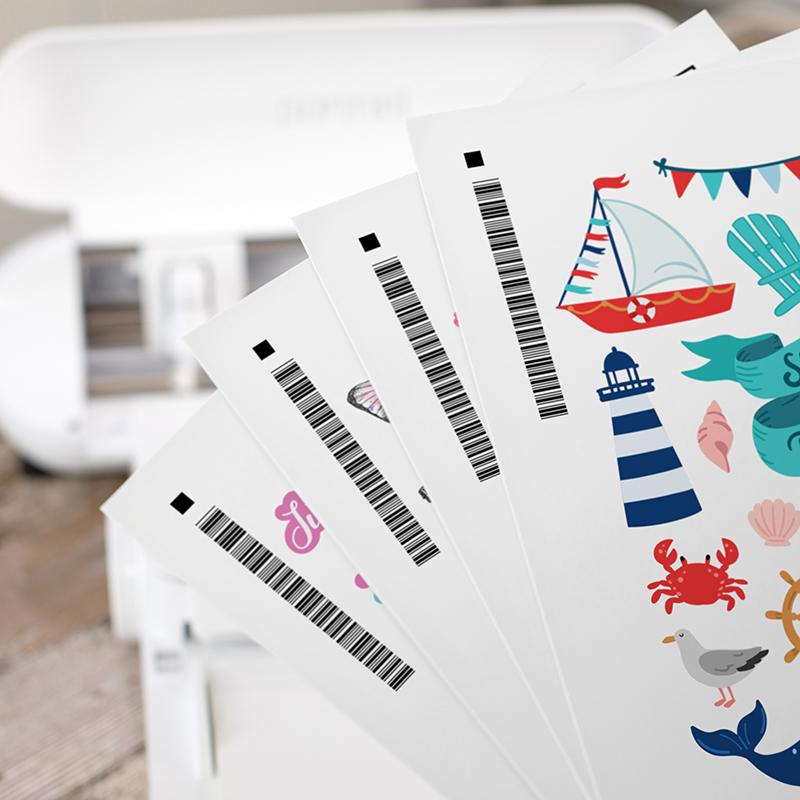

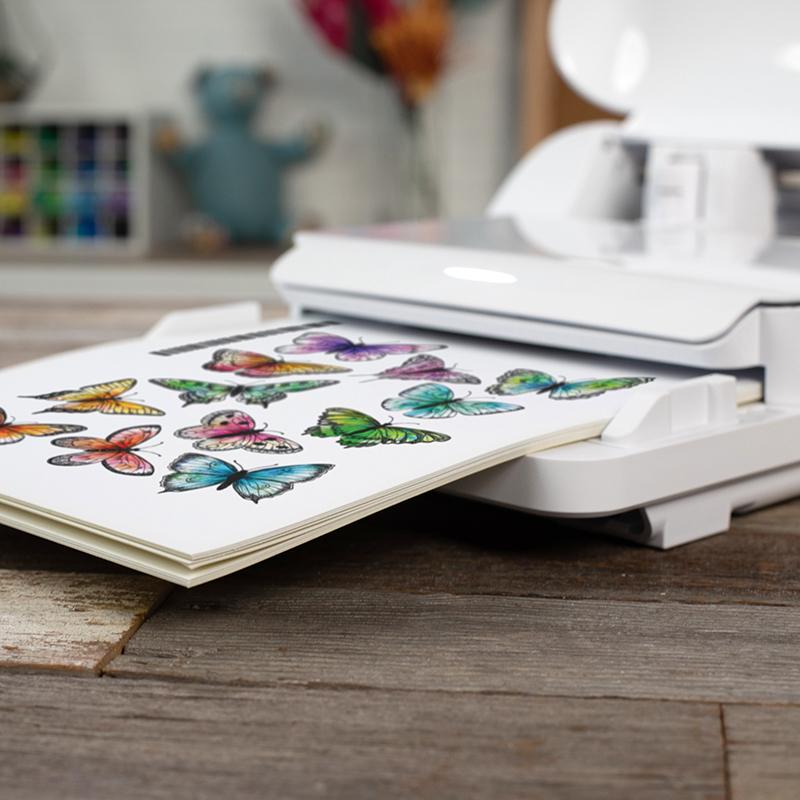

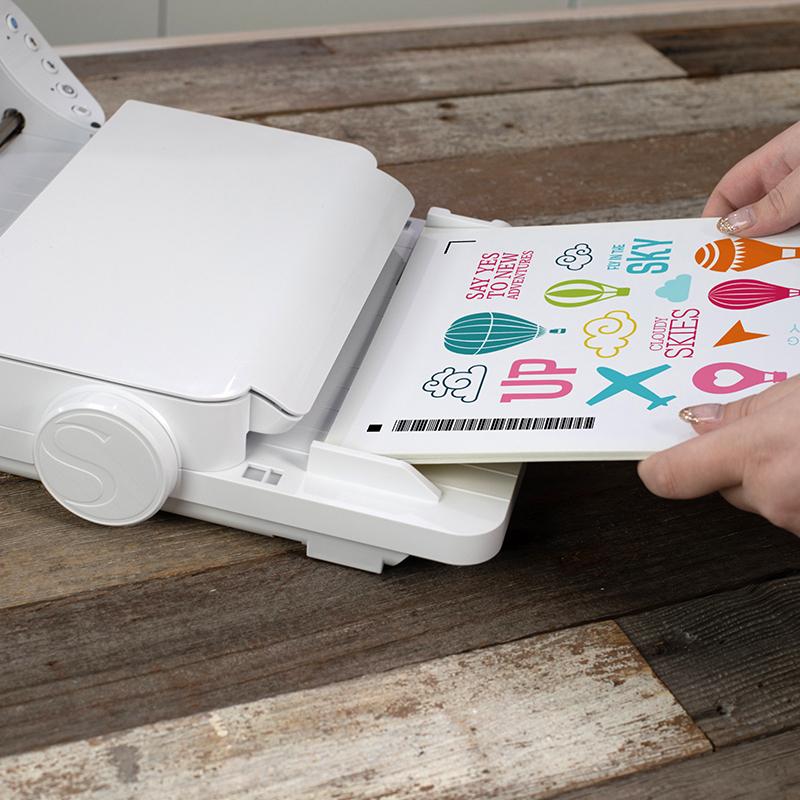

The Auto Sheet Feeder simplifies the bulk cutting process by automatically loading sheet materials into your Silhouette cutting machine. Place up to 20 sheets of material into the top tray and set the number of copies to be cut in Silhouette Studio®. Then, the Auto Sheet Feeder loads each sheet into the cutting machine and ejects it below the loading tray or behind the cutting machine for a seamless, matless cut job. Cut the same design multiple times, or send different cut jobs at the same time using barcodes. The Auto Sheet Feeder is compatible with the Silhouette Portrait® 3 and Cameo® 4.

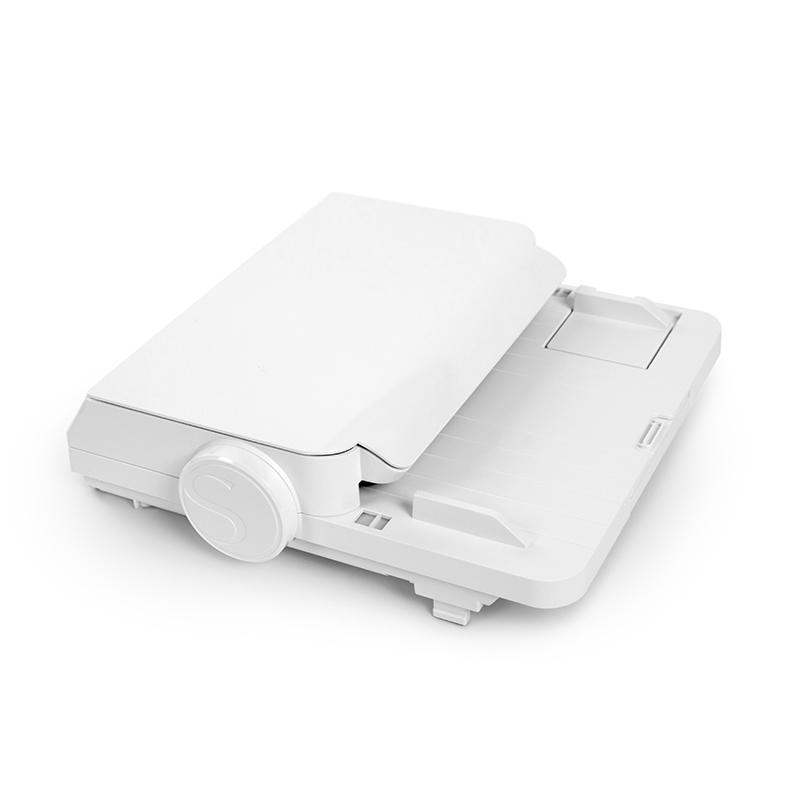

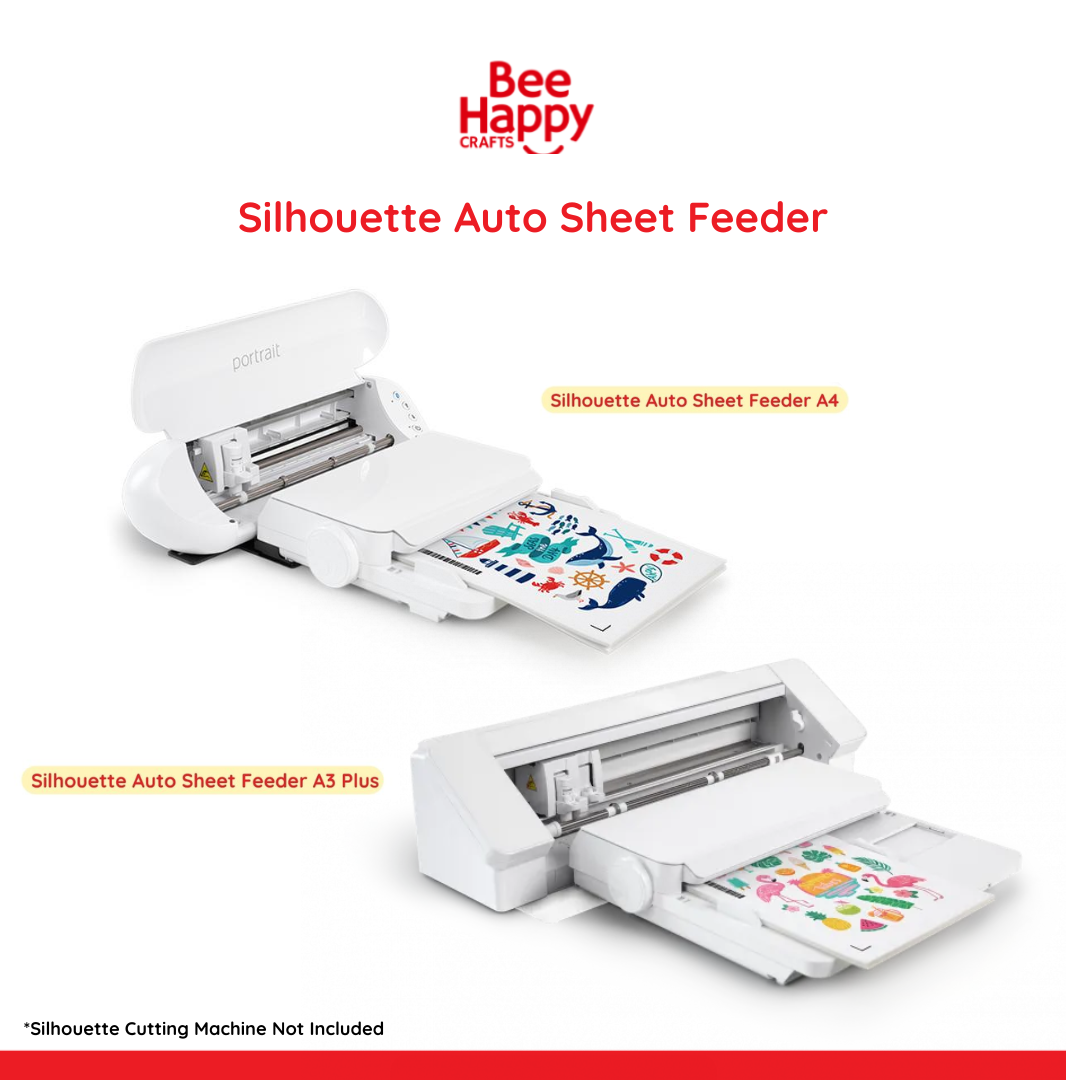

Silhouette Auto Sheet Feeder A4:
The Auto Sheet Feeder is compatible with the Silhouette Portrait® 3 and Cameo® 4.
Tech Specs:
- Compatible Media Sizes:
- A4: 8.27 in. x 11.7 in. (210 mm x 297 mm)
- US Letter: 8.5 in. x 11 in. (216 mm x 279 mm)
- Compatible Media Types: Sticker paper, photo paper, and other rigid sheet materials. (Curled or electrostatically charged media may not be used)
- Compatible Media Thickness: 0.18mm~0.26mm
- Maximum Material Capacity: 20* / ≤ 4.4mm (*Maximum capacity varies by media thickness.)
- Compatible Cutting Machines:
- Silhouette Cameo® 4
- Silhouette Portrait® 3
- Interface: USB 2.0 high speed (no Bluetooth® compatibility)
- Unit Dimensions: 10.75 in. x 11.1 in. x 2.72 in. (27.3 cm x 28.2 cm x 6.9 cm)
- Unit Weight: 2 lbs 8.2 oz (1.14 kg)
- Shipping Dimensions: 13 in. x 12.5 in. x 4.75 in. (33 cm x 31.6 cm x 12 cm)
- Shipping Weight: 3 lbs 7.5 oz (1.6 kg)
- Requires Silhouette Studio® software version 4.5.117 or higher
- Minimum System Requirements: Windows 8.1/10/11 or higher or Mac OS X 10.14 or higher, 2 GHz processor, 4 GB RAM, 2 GB available disk space, USB port, High-speed internet connection (recommended)

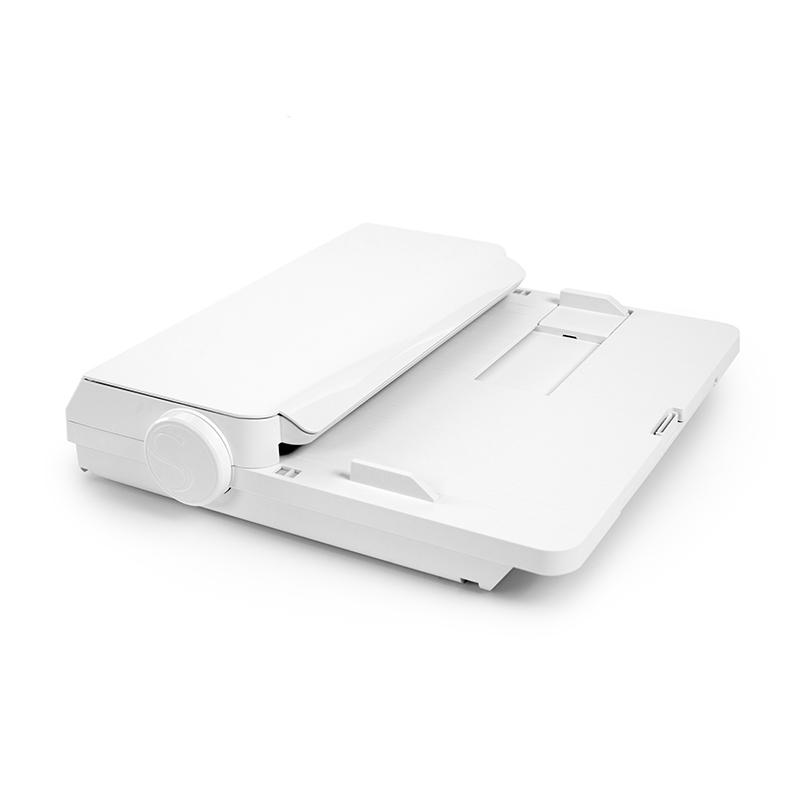

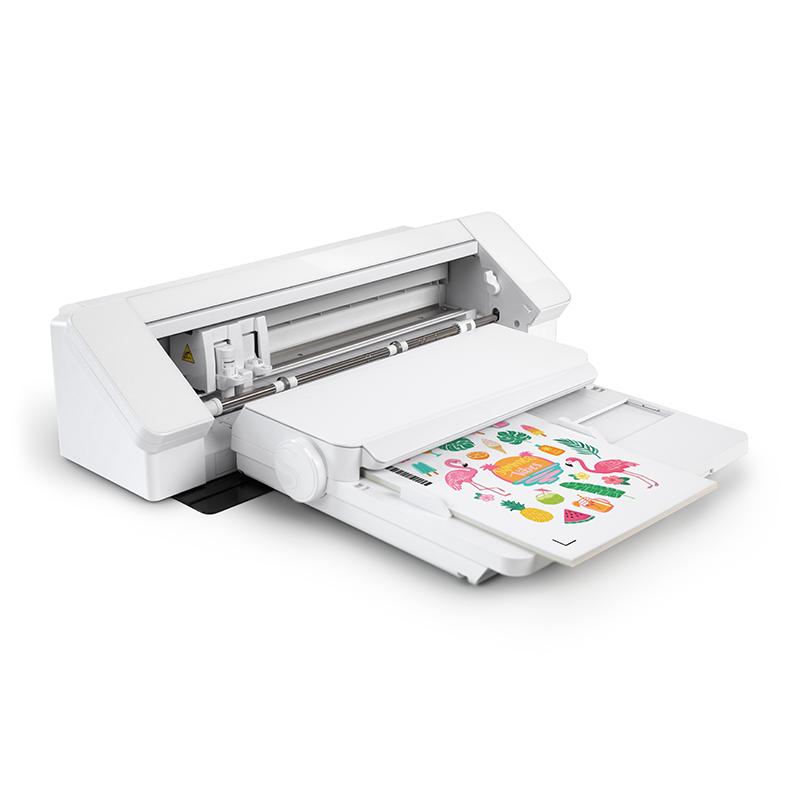

Silhouette Auto Sheet Feeder A3 Plus:
The Auto Sheet Feeder A3 Plus is compatible with the Silhouette Cameo® 4 Plus and Cameo® 4 Pro.
Tech Specs:
- Compatible Media Sizes:
- A3: 11.7 in. x 16.5 in. (297 mm x 42 mm)
- 12 in. x 12 in. (305 mm x 305 mm)
- A4: 8.27 in. x 11.7 in. (210 mm x 297 mm)
- US Letter: 8.5 in. x 11 in. (216 mm x 279 mm)
- Compatible Media Types: Sticker paper, photo paper, and other rigid sheet materials. (Curled or electrostatically charged media may not be used)
- Compatible Media Thickness: 0.18mm~0.26mm
- Maximum Material Capacity: 20* / ≤ 4.4mm (*Maximum capacity varies by media thickness.)
- Compatible Cutting Machines:
- Silhouette Cameo® Pro
- Silhouette Cameo® Plus
- Interface: USB 2.0 high speed (no Bluetooth® compatibility)
- Unit Dimensions: 15.28 in. x 14.5 in. x 3.3 in. (38.8 cm x 36.8 cm x 8.4 cm)
- Unit Weight: 4 lbs 5.1 oz (1.96 kg)
- Shipping Dimensions: 18.1 in. x 15.83 in. x 5.2 in. (46 cm x 40.2 cm x 13.2 cm)
- Shipping Weight: 5 lbs 15.2 oz (2.7 kg)
- Requires Silhouette Studio® software version 4.5.117 or higher
- Minimum System Requirements: Windows 8.1/10/11 or higher or Mac OS X 10.14 or higher, 2 GHz processor, 4 GB RAM, 2 GB available disk space, USB port, High-speed internet connection (recommended)
Contains:
- Sheet Feeder
- Power Divider Cable
- Positioning Base
- Safety Sheet
